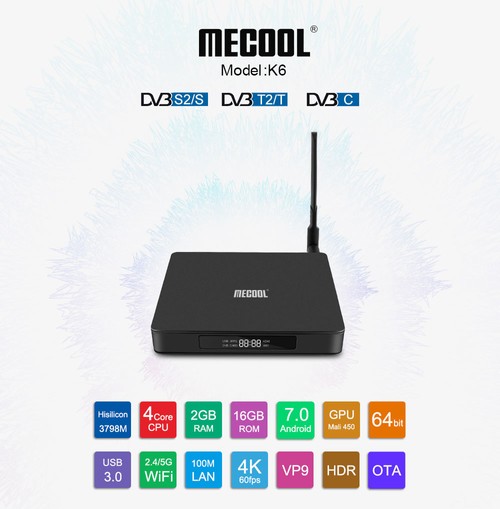

MECOOL K6 Hisilicon HI3798M Android 2GB / 16GB TV BOX

Highlights

Hisilicon HI3798MV200

MECOOL K6 is equipped with Huawei Hisilicon chip, which is more powerful and clearer in picture quality, bringing a richer end-user experience.

Android 7.0

MECOOL K6 is based on the Android 7.0 OS, with high speed and smooth, designed to turn your regular TV into a smart one.

2GB RAM + 16GB Flash

MECOOL K6 tv box is equipped with 2GB RAM+ 16GB ROM, supporting stable operations and providing you with more space and caches to enjoy your entertainment.

2.4G/5G Dual Band WiFi

With support for 2.4Ghz and 5Ghz band, it can transmit higher amounts of data.

True 4K Media Player

While your average media box might only accept 1080P video playback, this gadget can play any 4K source.

100M LAN

Equipped with 100M LAN Interface for unfettered internet surfing.

MECOOL K6 Hisilicon HI3798M Android 2GB / 16GB DVB 4K TV BOX Dual Band WiFi LAN USB3.0

Specification

General	Brand: MECOOL Model: K6 Type: TV Box
Hardware	OS: Android 7.0 CPU: Hisilicon HI3798MV200 Quad-core 64-bit ARM Cortex A53 GPU: Mali 450 RAM: 2GB DDR3 ROM: 16GB
Communication	WIFI: 2.4G/ 5G WiFi LAN: 100M
Video decorder	HiVXE 2.0 Processing Engine H.265/HEVC Main/Main 10 profile@level 5.1 high-tier H.264/AVC BP/MP/HP@level 5.1, H.264/AVC MVC maximum 4K2K@60 fps 10-bit decoding 4K2K @60 fps 10-bit VP9 decoding
Video encorder	H.265 MP@level 5 main tier and H.264 BP/MP/HP@level 4.2 video encoding, maximum 1x1080p@30 fps VBR or CBR mode for video encoding Low-delay encoding Multi-ROI encoding
Media	HDR: HDR10/HLG HDR/SLF HDR Decoder format: HD MPEG1/2/4, H.265/HEVC , HD AVC/VC-1, RM/RMVB, Xvid, RealVideo8/9/10 Media format: Avi / Rm / Rmvb / Ts / Vob / Mkv / Mov / ISO / wmv / asf / flv / dat / mpg / mpeg Music format: WMA / AAC / WAV / OGG / DDP / TrueHD / HD / FLAC / APE Photo format: HD JPEG / BMP / GIF / PNG / TIF

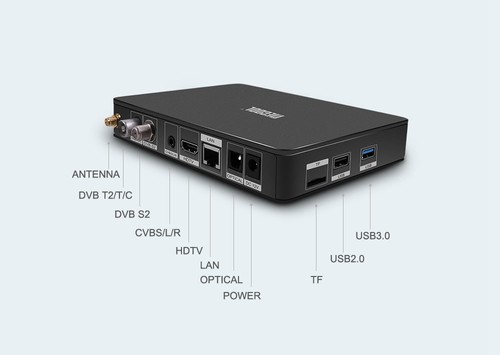

Interface	OPTICAL, HDTV, LAN, TF card slot, USB2.0 ,DC 12V, USB3.0, ANTENNA, DVB T2 /T / C, DVB S2, CVBS/L/R
Other Features	HDMI 2.0 Language: Multi-language

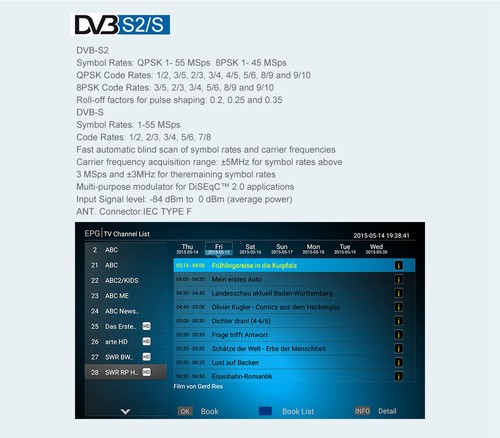

DVB-S2	DVB-S2 system standard:ETS 302 307 Symbol Rates: QPSK,8PSK Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 Symbol Rates: 1- 55 Msps Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector: IEC TYPE F

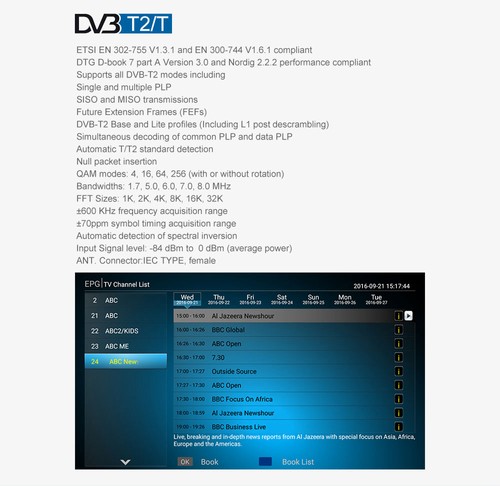

DVB-T2	DVB-T2/T system standard: ETSIEN 302 755 Support MPLP Demodulation: QPSK,16QAM,64QAM or 256QAM Forward error correction rate 1/2,2/3,3/4,3/5,5/6 Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128 Bandwith: 6/7/8MHz Input Frange range: 54--860MHz Input Impedance:75 Ω Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector: IEC TYPE, female

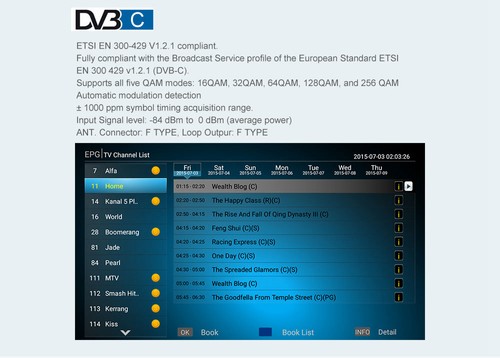

DVB-C	DVB_C system standard: ETSI EN300 429 V1.2.1 Demodulation: 16/32/64/128/256QAM Input Frange range: 48--860MHz Input Impedance:75 Ω Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector: IEC TYPE, female
Power	Power Type: External Power Adapter Mode
Dimensions&Weight	Product weight: 0.2295kg Package weight: 0.7100kg Product size(L x W x H): 16.00 x 12.00 x 2.6 cm / 6.30 x 4.72 x 1.02 inches Package size (L x W x H): 19.10 x 16.20 x 8.0 cm / 7.51 x 6.37 x 3.15 inches

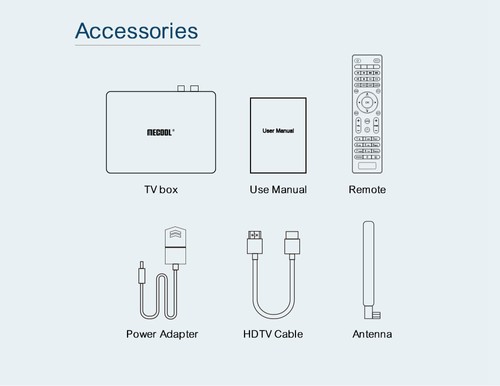

Package Contents	1 x TV Box 1 x Power Adapter 1 x IR remote control 1 X HDTV Cable 1 X User Manual 1 x WiFi Antenna
